QHYCCD OAG Small (QHYOAG-S)
QHYCCD OAG Small (QHYOAG-S)
Couldn't load pickup availability
QHYCCD OAG Small

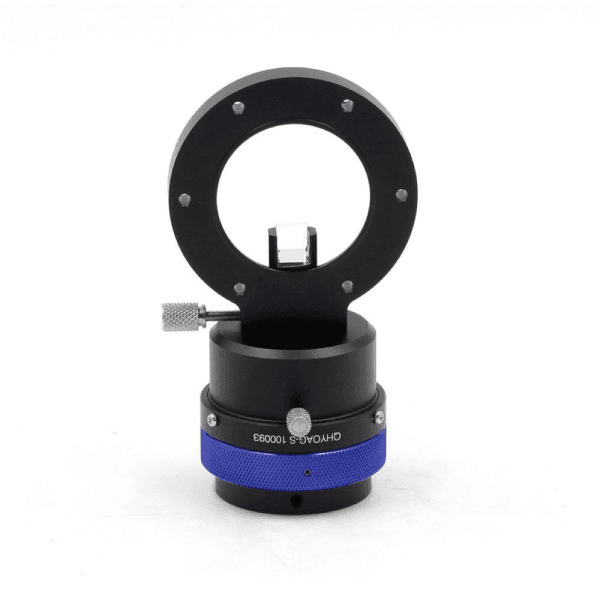

There are three models of QHYOAG: QHYOAG-S, QHYOAG-M, and QHYOAG-L for different size sensors. The QHYOAG is a thin and solid design. The OAG main body is just 10mm thick. Adding an M42 thread or M54 adapter ring adds only 3mm for a total thickness of 13mm. There are six 3mm through holes in the OAG for direct connection to the QHYCFW2 and QHY “A” series cameras. If you do not have a QHYCFW2 or QHY “A” series camera, you can also use this OAG with a third-party adapter ring on the camera side. The QHYOAG comes with a multithread 1.25-inch focuser. The focuser has a locking thumbscrew to hold the guide camera fixed after focusing. The prism position can be adjusted and can be locked to fix its position. The prism is 8mm x 8mm size and the aperture between the prism and mirror is 8mm in diameter.
Stable and Strong / High Parallelism
Direct connection to the camera with six screws ensures connection accuracy and parallelism, providing a reliable mechanical connection for your photography.
Precision Connection / No Deflection
The main purpose of the OAG is to use the same optical path as the main camera. This avoids the problem of differential deflection that can occur when using a separate optical system for guiding. In the case of the OAG, a part of the image is picked-off from the edge of the imaging circle which does not block the main CCD. This method provides more accurate guiding and sharper images.
Compatibility: Multiple Adapters / Flexible Combinations
In addition to the connection with the A-series cameras, you can also use the various standard or optional accessories provided by QHYCCD to achieve complex and adaptable connections, including the use of the OAG as a stand alone unit, connection to QHY filter wheels, etc.
Stable and Strong / Precise Easy Focusing
The QHYOAG includes a precision 1.25-inch helical focuser that accepts our QHY5II and QHY5III cameras. The focusing process is comfortable. After focusing, you can lock the focus mechanism with thumbscrews.
Three Sizes: Small to Large Cameras
QHYCCD provides a large, medium and small OAG, with a light aperture suitable for different sizes of CCD or CMOS cameras, and a variety of adapter accessories for selection.
Small OAG
Compatible with QHY695A, 90A, QHY163, QHY183, QHY290, QHY174, etc.Medium OAG
Compatible with QHY16200A, QHY367C, QHY128C, QHY medium filter wheel. The QHYOAG-M support both M42/0.75 and M54/0.75 thread adapter. So there is totally four possible setup: Both side is M42/0.75, both side is M54/0.75, front is M42 and back side is M54. front side M54 and back side M42.Large OAG
Compatible with large sensor cameras such as the QHY16803A and QHY09000ATechnical Specifications

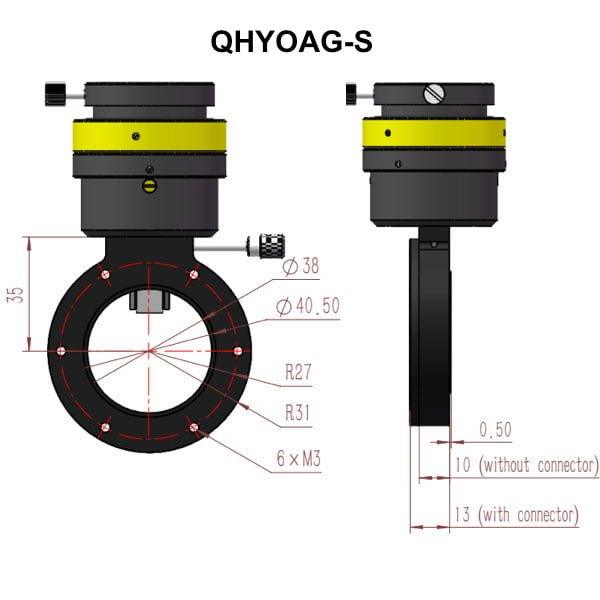

Small
| Model | QHYOAG-S |
| Telescope Interface | M42/0.75 |
| Main Body Thickness | 10mm 13mm with M42 or M54 adapter |
| Diameter of 6 x M3 screw hole positions | 54mm |
| Suitable for CCD/CMOS Size | 1 inch or smaller |
| Compatible Products | QHY90A, QHY695A, QHYCFW2-S, QHY183, QHY163 |
| Guide Camera Interface | 1.25-inch |
| Weight | 127g |
In the Box
QHYOAG
Mounting Hardware
Manual & Warranty
QHY 1-Year Warranty
