QHYCCD Medium OAG (QHYOAG-M)
QHYCCD Medium OAG (QHYOAG-M)
Couldn't load pickup availability
QHYCCD Medium OAG
There are three models of QHYOAG: QHYOAG-S, QHYOAG-M, and QHYOAG-L for different size sensors. The QHYOAG is a thin and solid design. The OAG main body is just 10mm thick. Adding an M42 thread or M54 adapter ring adds only 3mm for a total thickness of 13mm. There are six 3mm through holes in the OAG for direct connection to the QHYCFW2 and QHY “A” series cameras. If you do not have a QHYCFW2 or QHY “A” series camera, you can also use this OAG with a third-party adapter ring on the camera side. The QHYOAG comes with a multithread 1.25-inch focuser. The focuser has a locking thumbscrew to hold the guide camera fixed after focusing. The prism position can be adjusted and can be locked to fix its position. The prism is 8mm x 8mm size and the aperture between the prism and mirror is 8mm in diameter.
Stable and Strong / High Parallelism
Direct connection to the camera with six screws ensures connection accuracy and parallelism, providing a reliable mechanical connection for your photography.
Precision Connection / No Deflection
The main purpose of the OAG is to use the same optical path as the main camera. This avoids the problem of differential deflection that can occur when using a separate optical system for guiding. In the case of the OAG, a part of the image is picked-off from the edge of the imaging circle which does not block the main CCD. This method provides more accurate guiding and sharper images.
Compatibility: Multiple Adapters / Flexible Combinations
In addition to the connection with the A-series cameras, you can also use the various standard or optional accessories provided by QHYCCD to achieve complex and adaptable connections, including the use of the OAG as a stand alone unit, connection to QHY filter wheels, etc.
Stable and Strong / Precise Easy Focusing
The QHYOAG includes a precision 1.25-inch helical focuser that accepts our QHY5II and QHY5III cameras. The focusing process is comfortable. After focusing, you can lock the focus mechanism with thumbscrews.

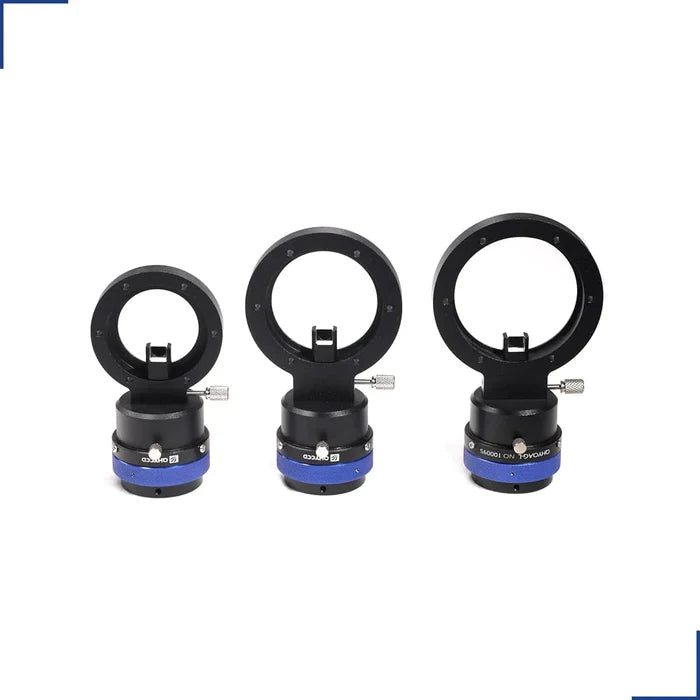

Three Sizes: Small to Large Cameras
QHYCCD provides a large, medium and small OAG, with a light aperture suitable for different sizes of CCD or CMOS cameras, and a variety of adapter accessories for selection.
Small OAG
Compatible with QHY695A, 90A, QHY163, QHY183, QHY290, QHY174, etc.
Medium OAG
Compatible with QHY16200A, QHY367C, QHY128C, QHY medium filter wheel. The support both M42/0.75 and M54/0.75 thread adapter. So there is totally four possible setup: Both side is M42/0.75, both side is M54/0.75, front is M42 and back side is M54. front side M54 and back side M42.
Large OAG
Compatible with large sensor cameras such as the QHY16803A and QHY09000A
Technical Specifications
| Model | QHYOAG-M |
| Telescope Interface | M54/0.75 |
| Main Body Thickness | 10mm
13mm with M42 or M54 adapter |
| Diameter of 6 x M3 screw hole positions | 62mm |
| Suitable for CCD/CMOS Size | APS-C, APS-H, 36 x 24mm, 4/3 inch |
| Compatible Products | QHY16200A, QHYCFW2-M, QHY165C, QHY128C, QHY247C, QHY367C |
| Guide Camera Interface | 1.25-inch |
| Weight | 145g |
In the Box
QHYOAG-M
Mounting Hardware
Manual & Warranty
QHYCCD 2-Years Warranty
QHYOAG User Guide

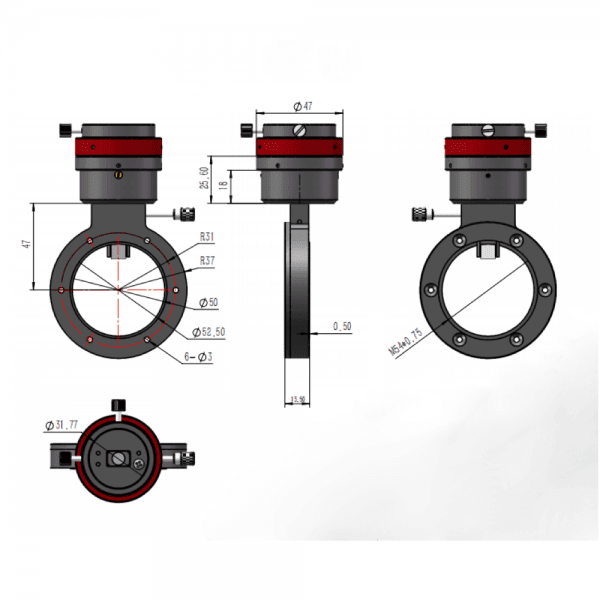

QHYOAG-M Mechanical Drawing
