Buckeye Stargazer ZWO EAF-N & EAF-Pro Mounting Solutions
Buckeye Stargazer ZWO EAF-N & EAF-Pro Mounting Solutions
Regular price
$17.45 USD
Regular price
$25.29 USD
Sale price
$17.45 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Buckeye Stargazer ZWO EAF-N and EAF-Pro Mounting Solutions

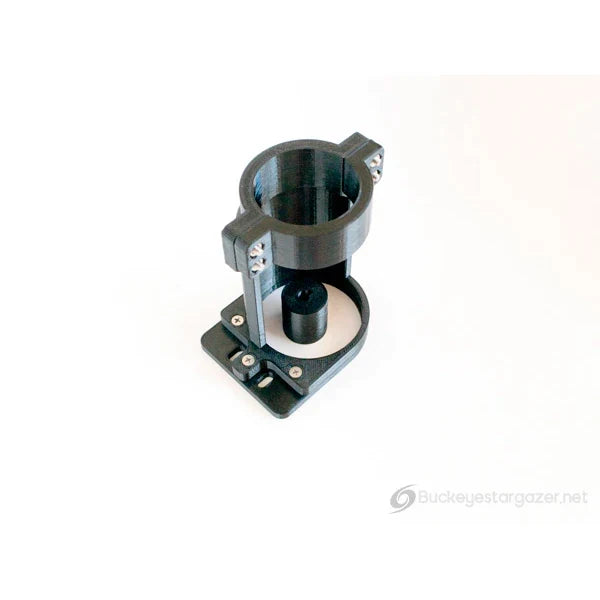

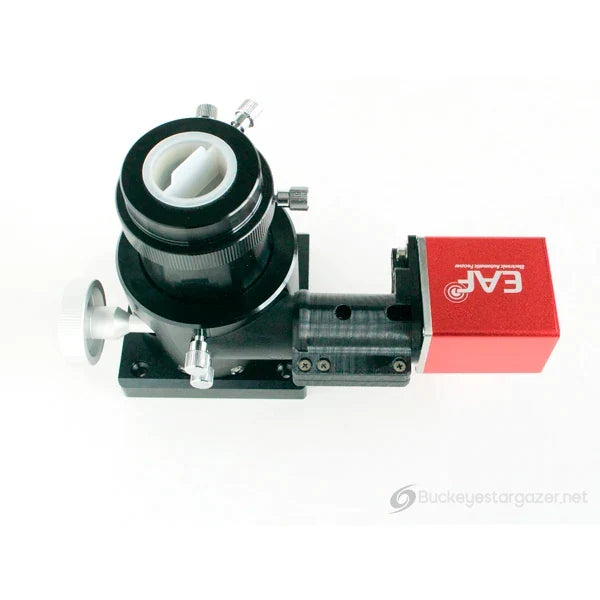

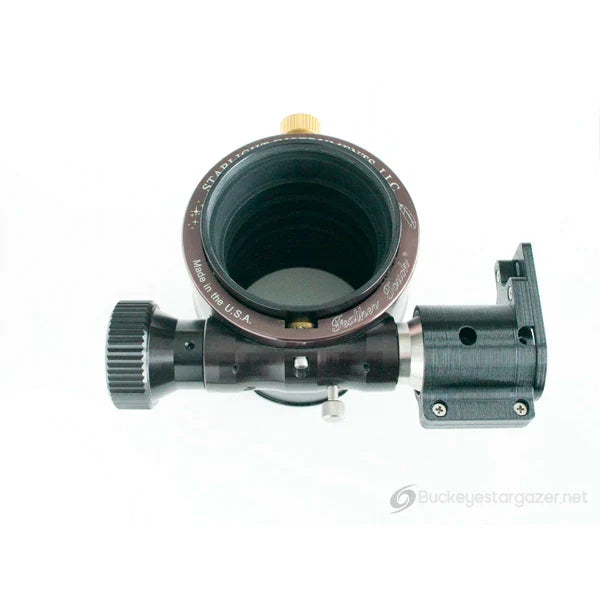

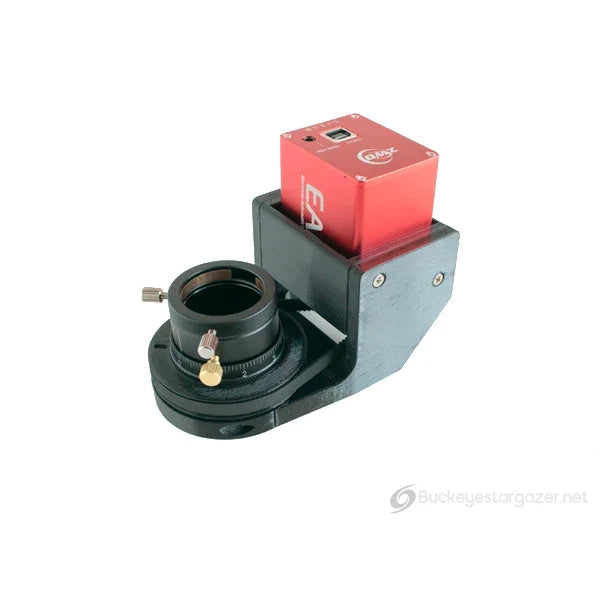

This bracket allows you to mount a ZWO Electronic Automatic Focuser (EAF) onto your telescope or lens focuser.

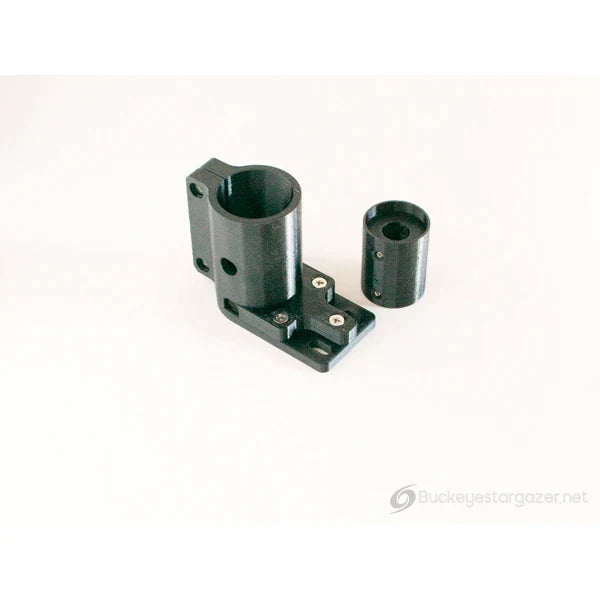

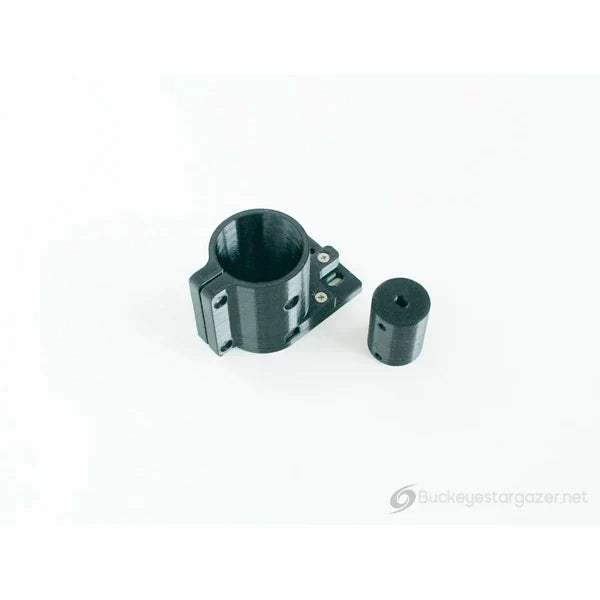

The ZWO supplied M4 screws are used to attach the EAF to the bracket. Where necessary a coupler is provided to connect the EAF pinion shaft to the focuser pinion shaft and is held securely with M3 set screws. Note that the user will need to have a 1.5mm hex key for the M3 set screws (not provided).
See Technical Specification for Compatibility
As of June 2025 the EAF and EAF-Pro have a smaller pinion shaft than the original EAF (12v) and EAF-5v, as well as a USB-C connector. Please specify which Coupler will fit your particular EAF:
Coupler-EAF12v5v - fits the original EAF (12v) and EAF-5v
Coupler-EAFNPro - fits the newer EAF-N and EAF-Pro
Technical Specifications
ee installation instructions below.
| EAF-C5 | ZWO EAF bracket for the Celestron C5 |
| EAF-C5-Q | ZWO EAF bracket for the Celestron C5. Easily disengage belt drive system to quickly manually focus the scope. |
| EAF-C6.8.9.R8 | ZWO EAF bracket for modern Celestron C6/C8/C9.25/RASA8 Scopes that have 27mm between focuser mounting screws |
| EAF-C6.8.9.R8-Q | ZWO EAF bracket for modern Celestron C6/C8/C9.25/RASA8 Scopes that have 27mm between focuser mounting screws. Easily disengage belt drive system to quickly manually focus the scope |
| EAF-C11.14.R11v2 | ZWO EAF bracket for modern Celestron C11/C14/RASA11v2 scopes that have 34mm between focuser mounting screws |
| EAF-C11.14.R11v2-Q | ZWO EAF bracket for modern Celestron C11/C14/RASA11v2 scopes that have 34mm between focuser mounting screws. Easily disengage belt drive system to quickly manually focus the scope |
| EAF-C6.8.9-Classic | ZWO EAF bracket for classic Celestron C6/C8/C9.25 scopes that have 23mm between focuser mounting screws |
| EAF-C6.8.9-Class-Q | ZWO EAF bracket for classic Celestron C6/C8/C9.25 scopes that have 23mm between focuser mounting screws. Easily disengage belt drive system to quickly manually focus the scope |
| EAF-C11.14-Class | ZWO EAF bracket for classic Celestron C11/C14 scopes (non-Fastar/Edge) that have 34mm between focuser mounting screws |
| EAF-C11.14-Class-Q | ZWO EAF bracket for classic Celestron C11/C14 scopes (non-Fastar/Edge) that have 34mm between focuser mounting screws. Easily disengage the belt drive system to quickly manually focus the scope |
| EAF-MLXGPS | ZWO EAF bracket for Meade LX200GPS/LX90GPS scopes |
| EAF-MLXACF | ZWO EAF bracket for Meade LX200ACF/LX90ACF scopes |
| EAF-MLXClassic | ZWO EAF bracket for Meade LX200 Classic scopes |
| EAF-MLX850 | ZWO EAF bracket for Meade LX600/LX850 scopes |
| EAF-SWSkymax | ZWO EAF bracket for SkyWatcher 180/150 Skymax Mak-Cass |
| EAF-GSO-2CRF-M | ZWO EAF bracket for the GSO 2" Crayford Dual Speed Focuser |
| EAF-GSO-2LBF | ZWO EAF bracket for the 2" GSO Linear Bearing Focuser/TS Monorail Focuser |
| EAF-GSO-3.25LBF | ZWO EAF bracket for the 3.25" GSO Linear Bearing Focuser |
| EAF-GSO-2LBFEAF | ZWO EAF bracket for the 2" GSO EAF READY Linear Bearing Focuser |
| EAF-FTF20-Cray | ZWO EAF bracket for the Feathertouch FTF20xx Crayford focusers |
| EAF-FTF30 | ZWO EAF bracket for Feathertouch refractor focusers (FTF20, FTF25, FTF30, FTF32 Rack and Pinion) |
| EAF-FTF35 | ZWO EAF bracket for Feathertouch FTF35 refractor focusers |
| EAF-FTM-SCT | ZWO EAF bracket for Feathertouch Micro (incl. SCTs and RASA11v1) |
| EAF-FTM-RETRO | ZWO EAF bracket for Feathertouch Retrofit focusers (incl. Takahashi FS-128, TOA-130 etc) |
| EAF-ZWO-Heli-M42 | ZWO EAF bracket for the ZWO 1.25" Helical focuser with M42 mount |
| EAF-ZWOOAG-Heli | ZWO EAF bracket for the ZWO 1.25" Helical focuser on the OAG-L and OAG-L-M68 |
| EAF-QHYOAG-Heli | ZWO EAF bracket for the QHYOAG S/M/L and Pro |
| EAF-AskarOAG-Heli | ZWO EAF bracket for the Askar OAG |
| EAF-POneOAG-Heli | ZWO EAF bracket for the Player One OAG |
| EAF-OGMAOAG-Heli | ZWO EAF bracket for the OGMA OAG-XL |
| EAF-BSteelTrack | ZWO EAF bracket for Baader Diamond Steeltrack focuser |
| EAF-WO-WIFD | ZWO EAF bracket for William Optics WIFD focuser |
| EAF-WOCrayford | ZWO EAF bracket for William Optics Crayford focuser |
| EAF-ES2.5Hex | ZWO EAF bracket for Explore Scientific 2.5" Hex focuser |
| EAF-LP2 | ZWO EAF bracket for Long Perng 2" focuser (R/P and Crayford) |
| EAF-Redcat51-Plus | ZWO EAF bracket for the William Optics Redcat 51 ("Plus" includes TPU Focus Gear - prevents belt slippage) |
| EAF-Redcat71 | ZWO EAF bracket for the William Optics Redcat 71 |
| EAF-SVAccess | ZWO EAF bracket for the Stellarvue Access Telescope focuser |
| EAF-Lunt-1.25RP | ZWO EAF bracket for Lunt 1.25" Focusers (single and dual speed) |
| EAF-Lunt-2Cray | ZWO EAF bracket for Lunt 2" Dual Speed Crayford focuser |
| EAF-Lunt-2RP | ZWO EAF bracket for Lunt 2" Dual Speed Rack and Pinion focuser |
| EAF-AskarFMA230 | ZWO EAF bracket for Askar FMA230 |
| EAF-SWNewtCray | ZWO EAF bracket for the SkyWatcher dual speed NEWTONIAN crayford focuser (NON-low profile only) |
| EAF-Sam135 | EAF bracket for the Samyang/Rokinon 135mm F2 lens |
*As of June 2025 the EAF and EAF-Pro have a smaller pinion shaft than the original EAF (12v) and EAF-5v, as well as a USB-C connector. Please specify which Coupler will fit your particular EAF:
Coupler-EAF12v5v - fits the original EAF (12v) and EAF-5v
Coupler-EAFNPro - fits the newer EAF-N and EAF-Pro
Manuals & Warranty
| EAF SCT QUICK | download |
| EAF-C5, EAF-C6.8.9.25-RASA8, EAF-C11.14-RASA11v2, EAF-c6.8.9.25-Classic, EAF-C11.14-Classic | download |
| EAF-MLXGPS, EAF-MLXACF, EAF-MLXClassic | download |
| EAF-MLX850 | download |
| EAF-FTM-SCT, EAF-FTM-Retro | download |
| EAF-FTF30, EAF-FTF35 | download |
| EAF-GSO-2LBF | download |
| EAF-GSO-3.25LBF | download |
| EAF-GSO-2CRF-M | download |
| EAF-ZWO-Helical-M42, EAF-ZWOOAG-Helical, EAF-QHYOAG-Helical, EAF-AskarOAG-Helical, EAF-PlayOneOAG-Helical | download |
| EAF-BSteelTrack | download |
| EAF-WO-WIFD | download |
| EAF-LP2RP | download |
| EAF-Redcat51-Plus | download |
| EAF-Redcat71 | download |
| EAF-AskarFMA230 | download |
| EAF-SVAccess | download |
| EAF-Lunt-1.25RP | download |
| EAF-Lunt-2Cray, EAF-Lunt-2RP | download |
