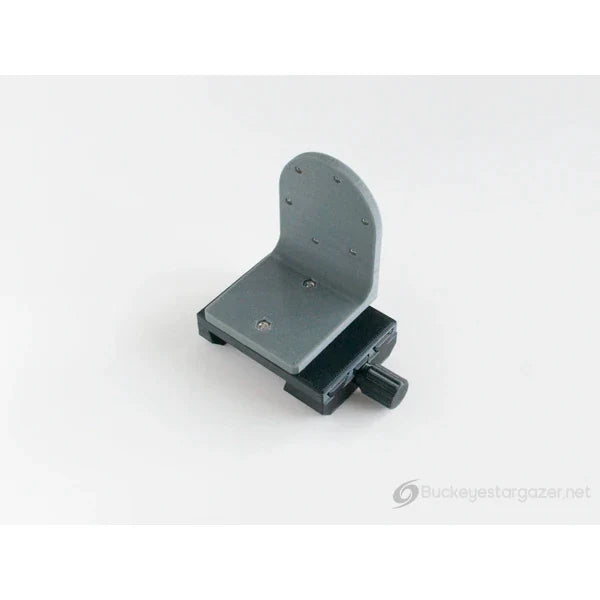

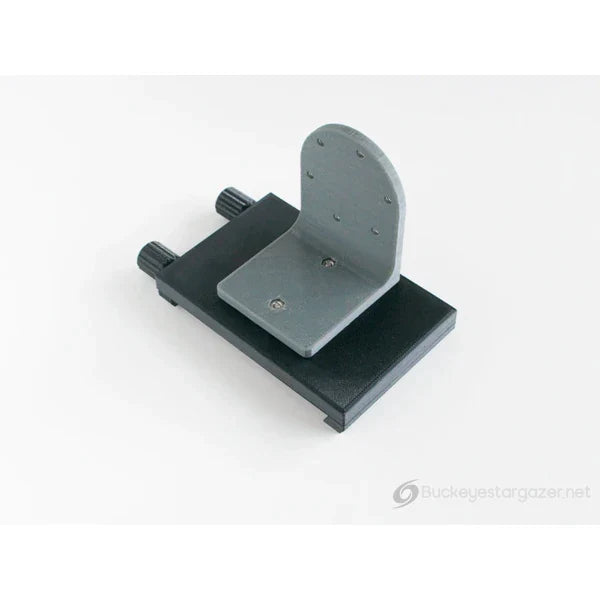

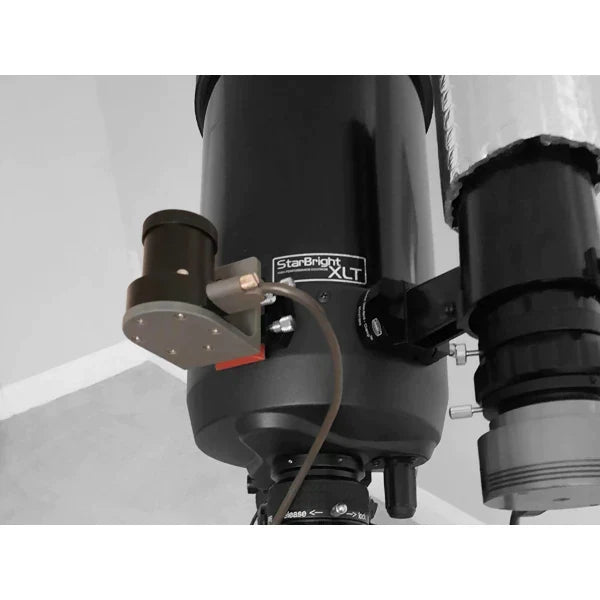

This bracket provides a mount-independentway to attach your QHY PoleMaster or iOptron iPolar to your telescope or mount for polar alignment. For example, you can attach the camera directly to a Vixen bar on top of the scope, or in a finderscope shoe, etc. The system consists of two parts: a bracket for your camera and one of several different attachments.
Technical Specifications
Polar Camera Compatibility:
PoleMaster-Bracket
Universal Bracket to Mount a QHY PoleMaster
iPolar-Bracket
Unversal bracket to Mount an iOptron iPolar
Bracket Attachment Compatibility:

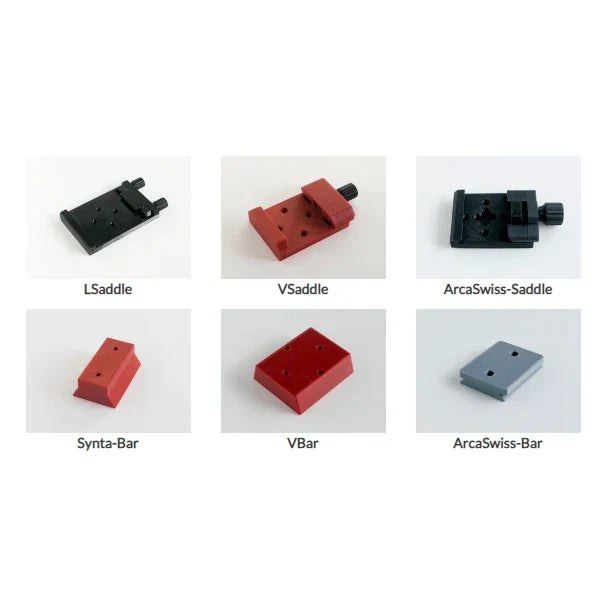

Attachments
(1 attachment is included in the price of the PoleMaster Bracket)
LSaddle
Losmandy saddle that clamps onto Losmandy/"D" rails
VSaddle
V-type saddle that clamps onto a Vixen bar/rail
VBar
Vixen type bar that slips into a V-type clamp
ADM-MDS-Saddle
ADM Mini Dovetail System saddle that clamps onto a MDS dovetail bar
ArcaSwiss-Saddle
Arca-Swiss saddle that clamps onto an Arca-Swiss rail
ArcaSwiss-Bar
Arca-Swiss bar that slips into an Arca-Swiss clamp
Synta-Bar-20mm
Synta/Vixen bar that slips into a Synta/Vixen finder base, 20mm tall
Synta-Bar-50mm
Synta/Vixen bar that slips into a Synta/Vixen finder base, 50mm tall
