New version Oasis Focuser. It supports USB power supply and has built-in heating module. It is more compact. It also supports stall detection and focusing over Bluetooth interface

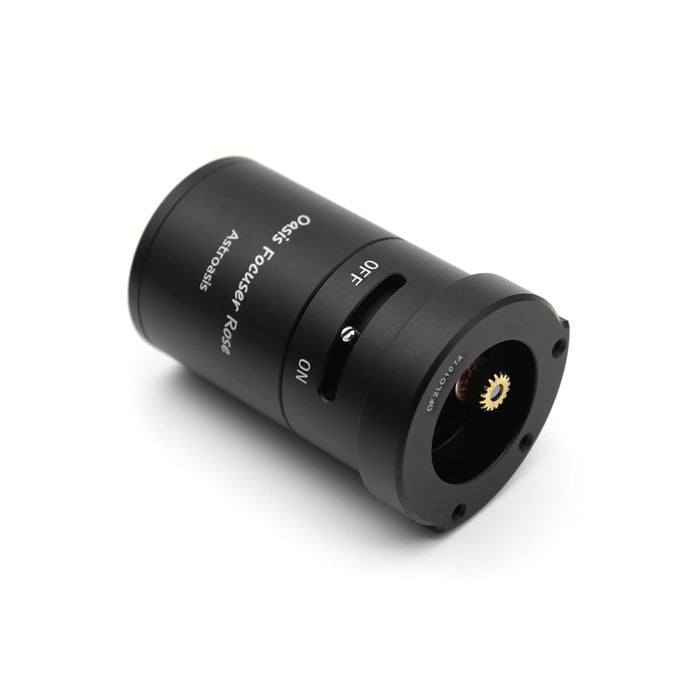

Oasis Focuser Rose is the second generation of the Astroasis electronic focuser. On the basis of the first generation, the second generation has made important improvements and is a perfect electronic focuser for astrophotography.

Oasis Focuser Rose is the second generation of the Astroasis electronic focuser. On the basis of the first generation, the second generation has made important improvements and is a perfect electronic focuser for astrophotography.

Compared with the first generation, the second generation has made the following improvements:

Convenient power supply

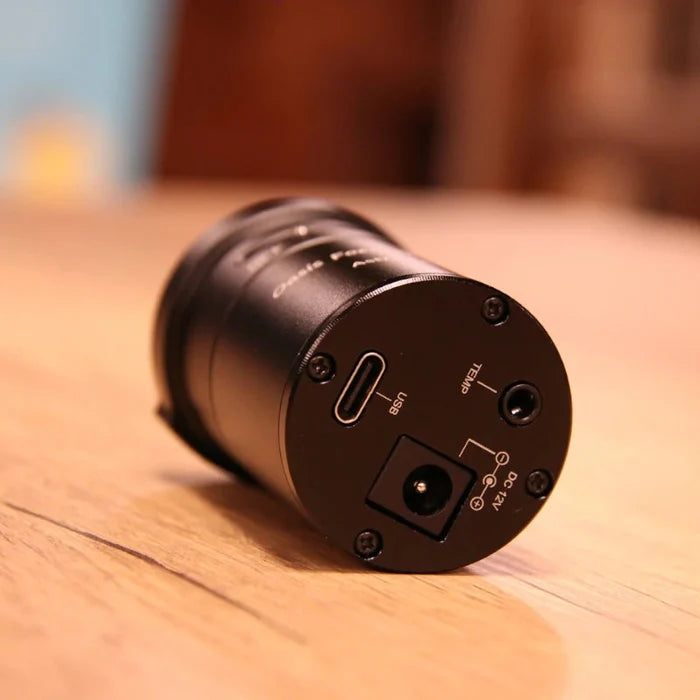

It can be powered by either the USB Type-C port or the 12V DC port.

Stall detection

Motor stall detection feature prevents the telescope focuser and the gears from being damaged in case the telescope focuser moves out of the minimum or maximum range or in other cases that are not expected.

Built-in heating module

The built-in heating module allows the focuser to work in low ambient temperature conditions for North China, Europe, North America users when capturing in winters. The heating module can be controlled at a constant temperature when heating so it's easy to use.

Gear locator

The gear locator helps user to install the gear in the right place.

Improved reliability

Motor is upgraded to improve reliability. PCB is re-designed to improve reliability of power module, USB/DC/Temperature sockets etc.

Better connection method

The connection method of the fixed-part and the rotatable part is improved. The connection of the fixed-part and the rotatable part is more stable.

More compact dimensions

Compared to the first generation, the second generation Oasis focuser body has a 14.5mm reduction in the length and a 4mm reduction in the diameter of the rotatable part.

Oasis Focuser Rose inherits all the excellent features of the first generation Oasis Focuser, including:

• Clutch function — Easy and fast switching between motor and manual focusing
• Bluetooth function — Mobile devices such as mobile phones can be used to control the focuser via Bluetooth
• High precision — Micron precision for each motor step
• Ability to drive heavy load — Testing indicates that it can driver net loads more than 5Kg
• Excellent backlash compensation performance — Gears and rigid components provide excellent backlash compensation performance

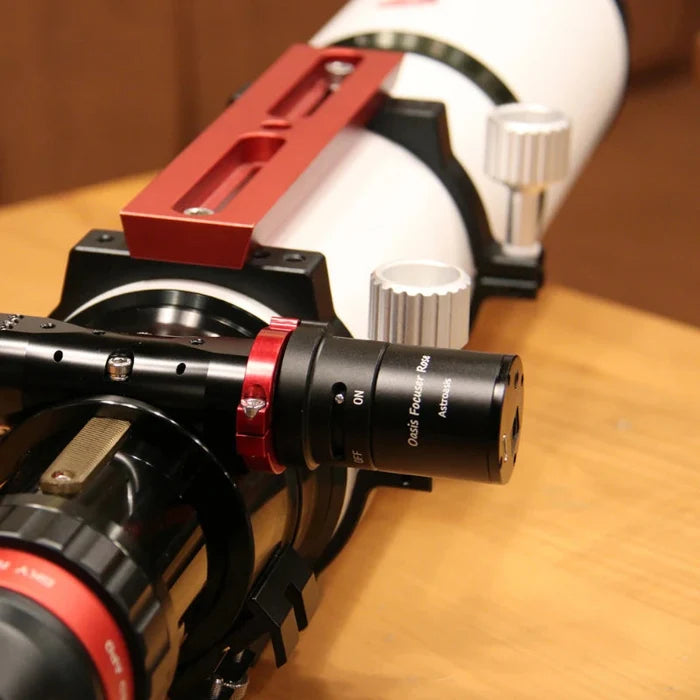

• Easy to install — Easy to install or uninstall focuser body. Only one screw needs to be used to install or uninstall focuser body. And it can be installed on many telescope focusers
• High integrated — Except for the ambient temperature probe, all functions and components (including motor, controller board etc.) are implemented and integrated in the single compact focuser body

In addition, this product has the following features:

1. Support USB HID device interface. Device driver installation is not required for Windows, Linux and macOS operation systems.
2. Support ASCOM interface
3. Support INDI
4. Support INDIGO
5. Has two temperature sensors, one monitors board temperature, the other monitors ambient temperature
6. Has beep generator for tips or alarms

Oasis Focuser uses gears instead of coupling and has good rigidity, which helps to achieve excellent backlash compensation performance and focusing accuracy. On most telescopes, each motor step moves less than 1μm distance and has high precision.

Technical Specifications

Dimensions of Oasis Focuser Rose

Compatibility Chart

No.	Parts		Supported Telescopes/Focusers	SKU
1	Basic suit	Includes the following items: 1) Main assembly 2) Gear 3) Gear locator 3) USB cable 4) Temperature probe 5) Hex keys 6) Screws		OF-BS
2	General clamp（Diameter：28mm）		Skywatcher Evolux 82ED Skywatcher Newtonian dual-speed focuser	OF-GC28
3	General clamp（Diameter：29mm）		Sharpstar FRA 300/ZWO FF65	OF-GC29
4	General clamp（Diameter：30mm）		Askar 61EDPH Skywatcher Esprit 120 Maxvision 152/1900mm Maka The following adapters also need this 30mm clamp: 1) All the universal adapters 2) OF-CSA8925 adapter 3) OF-A20472 adapter 4) OF-A20473 adapter	OF-GC30
5	General clamp（Diameter：32mm）		Askar 80PHQ/185 APO/FRA 400/FRA 600 Sharpstar AL90/76EDPH/94EDPH/107PH Sharpstar RP30S Meade SolarMax III 70DS MEYON 80ED	OF-GC32
6	General clamp（Diameter：33mm）		SkyRover 70/80/90/102/130 APO Starfield APO William Optics 10” RC Apertura 60EDR/72EDR/90APO The following adapters also need this 33mm clamp: 1) OF-CSA1114A adapter 2) OF-CSA1114B adapter	OF-GC33
7	General clamp（Diameter：34mm）		Sharpstar 107 PHQ/130PHQ/Z4/FRA 500 Askar 103APO	OF-GC34
8	Universal Adapter		Takahashi FSQ106 FSQ-85EDX TOA130-NFB APO	OF-UA1
9			Takahashi Epsilon Newtonian TOA130-NS	OF-UA2
10			Sharpstar 130F2.8HNT/150F2.8HNT Askar 103APO	OF-UA3
11			V-Power 2" focuser	OF-UA4
12			SkyRover 72ED APO Svbony SV503 70ED William Optics GT81-lV	OF-UA5
13			Askar V Askar 65PHQ	OF-UA6
14			Baader Diamond Steeltrack	OF-UA7
15			GSO 8” Carbon Newtonian Apertura CarbonStar 150 Newtonian	OF-UA8
16	SCT Adapter	Adapter CSA8925	Celestron C8/C925 and their HD series	OF-CSA8925
17		Adapter CSA1114A	Celestron C11/C14 and their HD series	OF-CSA1114A
		Adapter CSA1114B	Celestron C11/C15 and their HD series	OF-CSA1114B
18	Adapter for William Optics RedCat 51		William Optics RedCat 51	OF-ARC51
19	Adapter for Sharpstar ACL200		Sharpstar ACL200	OF-AACL200
20	Adapter for Askar SQA55		Askar SQA55	OF-ASQA55
21	Adapter for Skywatcher Newtonian dual-speed focuser		Skywatcher Newtonian dual-speed focuser	OF-ASND
22	Adapter for 2047 Focusers		2047 2-inch Focuser	OF-A20472
23			2047 3.5-inch Focuser	OF-A20473
24	Adapter for Lacerta Carbon Newtonian, TS-Optics TS UNCN2-G2 focuser		Lacerta Carbon Newtonian, TS-Optics TS UNCN2-G2 focuser	OF-LCN
25	Rabbit-Head Clamp		FeatherTouch FTF20XX	OF-AFTF20
26	Dedicated Adapter		FeatherTouch FTF30XX	OF-AFTF30
27			FeatherTouch FTF35XX	OF-AFTF35

In the Box

1. Main Assembly

2. Gear Locator
3. M3 Clamp Screw
4. M4 Clamp Screw
5. Temperature Probe
6. USB Type A-C Cable
7. Gear
8. Locking Screw
9. M1.5 / M2 / M3 Hex Keys

Manual & Warranty

Astroasis Warranty

User Manual

Installation
